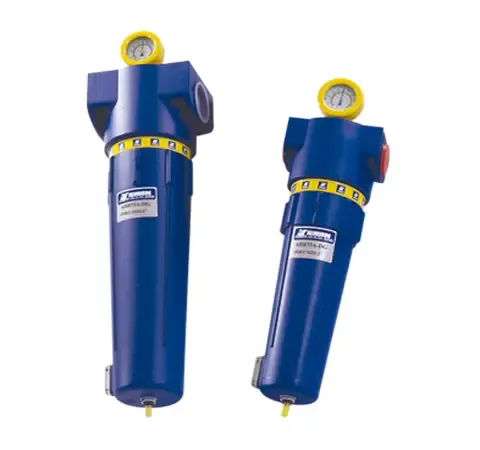

Main Line Filter (ARF)
For the removal of dust and particles with filtering fineness down to 1μm, designed for pre-filtration.
Oil Removal Filter (ARB)
For the removal of oil vapor in the air with filtering fineness down to 0.1μm, usually for general industries use.
Micro Filter (ARA)
For the removal of micro-particles with filtering fineness down to 0.01μm, recommended for those industries such as instrument, pneumatic control, advanced painting, coating ...etc , which require high quality air.
Active Carbon Filter (ACA)
0.003ppm。For the removal of oil mist and odor with filtering fineness down to 0.003 ppm., recommended for those industries such as food, pharmaceutical, semi-conductor...etc.
___________________________________________
ARB ; ARA ; ACA - 04A
Applicable Ranges: 1~5 HP
Max Working Pressure: 16 kg/cm²
Flow Rates: 530 nl/min
In/Out: 1/4''
___________________________________________
ARB ; ARA ; ACA - 08A
Applicable Ranges: 5~10 HP
Max Working Pressure: 16 kg/cm²
Flow Rates: 1750 nl/min
In/Out: 1/2''
___________________________________________
ARF ; ARB ; ARA ; ACA - 15A
Applicable Ranges: 10~20 HP
Max Working Pressure: 16 kg/cm²
Flow Rates: 3116 nl/min
In/Out: 3/4''
___________________________________________
ARF ; ARB ; ARA ; ACA - 22A
Applicable Ranges: 20~30 HP
Max Working Pressure: 16 kg/cm²
Flow Rates: 5000 nl/min
In/Out: 1''
___________________________________________
ARF ; ARB ; ARA ; ACA - 55A
Applicable Ranges: 30~75 HP
Max Working Pressure: 16 kg/cm²
Flow Rates: 11660 nl/min
In/Out: 1-1/2''
___________________________________________
ARF ; ARB ; ARA ; ACA - 75A
Applicable Ranges: 75~100 HP
Max Working Pressure: 16 kg/cm²
Flow Rates: 16660 nl/min
In/Out: 2''
___________________________________________
ARF ; ARB ; ARA ; ACA - 90A
Applicable Ranges: 100~125 HP
Max Working Pressure: 16 kg/cm²
Flow Rates: 20000 nl/min
In/Out: 2-1/2''
